Model: BLD-5188

Black Diamond BLD-5188 - 51
51" Rear Projection Television with Progressive Scan
BDT Code: 122094
Introducing the new 51" Black Diamond Rear Projection Television with Progressive Scan.

 BLD-5188 Features

1250 Line Progressive Scan:

What is progressive scan?

According to the theory of electronic technology, in order to remove the flickers between scanning lines and increase the definition in picture quality of a television, the line scanning frequency of a television must be raised.

For most conventional televisions, the line scanning frequency is 15.625kHz, which results in the number of the scanning lines being 625.

Black Diamond rear projection televisions use the latest electronic technology which is called “Progressive Scan”. Using progressive scan technology increases the number of scanning lines from 625 to 1250 by raising the line scanning frequency of a television from 15kHz to 31.5kHz, plus by shifting the frequency from 15kHz signal to 31.5kHz signal. The iris closes the lens to freeze the image captured by the CCD. The picture lines of one field are then consecutively read into two field memories and recorded. As this method records the actual image data (field A and B) captured at precisely the same moment, the vertical resolution is much higher than still images recorded in the conventional Photoshot mode.

What is the advantage of 1250 line progressive scan?

1250 line Progressive scan can remove the flickers between scanning lines and line scanning structure lines making the picture more stable and clearer. The vertical and horizontal visual angles are also enlarged. The brightness of picture is heightened obviously.

Comparison with 100Hz conventional scan:

Descriptions: 100Hz conventional scan: 1250 line progressive scan:
Forming of picture Picture formed simultaneously by scanning consecutively Two pictures added through scanning alternatively
Large amount of flickers Removed Removed
Flickers between scanning lines Still exist Removed
Line scanning structure lines Obvious Thin
Brightness Enhanced Enhanced
Visual angles Small Large

 BLD-5188 Specifications
· Screen Size 51" (127cmv) · 1250-line Progressive Scan
Can remove the flickers between scanning lines and line scanning structure lines making the picture more stable and clearer. The vertical and horizontal visual angles are also enlarged. The brightness of picture is heightened obviously.
· Pre Set Channels - 236 · Colour System PAL
· Program Naming · Still Picture
· Hyperband CATV ready · Blue Background Noise Reduction
· Audio Mute · Dynamic Colour Transient Improvement
· Dynamic Digital Focus System · Computer Picture Enhance Circuit
· Dynamic Light Transient Improvement · Dyanmic Noise Reduction
· Auto Dark Balance Rectification · Comb Filter (NTSC/PAL)
· On Screen Display
The On Screen Display provides ease of use for navigation through the Television menus.
· Recall
· On/Off Timer · Auto Off Without Signal
· 4 Picture Modes - Soft,Nature,Rich,User · Digital 12C bus control
· FS Tuner · Digital Frequency Tracing
· Hi-Fi Sound System · 4 Sound Modes: Surround, Speech, Theatre, Music
· AV Stereo Sound
Allows you to plug in a HiFi VCR via the AV Inputs and receive Nicam Stereo from the VCR or plug in a DVD player through the AV Inputs and receive superior DVD sound quality.
· Woofer
· Rear S-VHS Input 1 x Rear, 1 x Side
The "S" Connector allows for a much higher picture quality to be transferred between an AV device such as a DVD player or a Sky Decoder and the Television. It is recommended that this feature be utilised to achieve higher definition images with a noticeable reduction in colour bleeding and picture patterning, usually experienced with standard R.F and AV signals.
· AV Inputs 1 side & 2 rear AV inputs
· 1 side VGA Interface · Rear AV Output x 1
· DVD Component Input 1 x rear · Height: 1220mm
· Width: 1506mm · Depth: 712mm
· Weight: 94kg

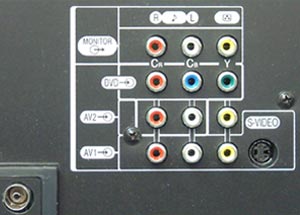

 BLD-5188 Rear Panel:
Black Diamond BLD-5188 - 51

 BLD-5188 Side Panel:
Black Diamond BLD-5188 - 51

 BLD-5188 Documents & Downloads:
 Brochure.pdf (121KB)
